• Cinetoys- ARCA Top Mount (RED Komodo, Komodo-X, V-Raptor) ติดตั้งกับสกรู 1/4-20 สองตัวบนด้านบนของกล้อง Komodo, Komodo-X, V-Raptor สำหรับกล้อง Komodo-X สามารถใช้สกรู M4 ที่ให้มาเพื่อติดตั้ง Top Mount ที่ส่วนหลังของด้านบนกล้องได้
  • ARCA Top Mount RED
  • ARCA Top Mount RED
  • ARCA Top Mount RED
  • Cinetoys- ARCA Top Mount (RED Komodo, Komodo-X, V-Raptor) ติดตั้งกับสกรู 1/4-20 สองตัวบนด้านบนของกล้อง Komodo, Komodo-X, V-Raptor สำหรับกล้อง Komodo-X สามารถใช้สกรู M4 ที่ให้มาเพื่อติดตั้ง Top Mount ที่ส่วนหลังของด้านบนกล้องได้

MID49 ARCA Top Mount (RED Komodo, Komodo-X, V-Raptor)

Brand:
Please, activate Compare option to use this widget.

Shipping calculated at checkout.
Brand: Mid49 Tags: , , , , , , , Categories:

ARCA Top Mount (RED Komodo, Komodo-X, V-Raptor) ติดตั้งกับสกรู 1/4-20 สองตัวบนด้านบนของกล้อง Komodo, Komodo-X, V-Raptor สำหรับกล้อง Komodo-X สามารถใช้สกรู M4 ที่ให้มาเพื่อติดตั้ง Top Mount ที่ส่วนหลังของด้านบนกล้องได้

โดยใช้ช่อง ARCA Swiss มาตรฐานตรงกลาง สามารถติดตั้ง ARCA Top Handle และ ARCA Top Plate (114mm) ได้ทั้งจากด้านบนหรือติดตั้งจากด้านหลังโดยการเลื่อนเข้าไป เมื่อเลื่อนเข้าจากด้านหลัง พินนิรภัยจะเข้าที่พร้อมเสียง”ป๊อป” เมื่อติดตั้งอย่างถูกต้อง ปรับตำแหน่งแล้วล็อคสกรูหัวแม่มือแบบ ratcheting การติดตั้งจากด้านบนสามารถทำได้โดยการคลายสกรูหัวแม่มือ ดึงลูกบิดแรตเช็ตออก และหมุนสกรูหัวแม่มือจนกระทั่งคลิป ARCA เปิดเต็มที่ ทำขั้นตอนย้อนกลับเพื่อขันแน่น หมายเหตุ: สำหรับ V-Raptor จะใช้งานได้เฉพาะกับชุดรูสกรูด้านหน้าของด้านบนเท่านั้น

Top mount ยังมีรู 1/4-20, 3/8-16 พร้อมพินตำแหน่ง ARRI และรู M4x20mm สำหรับติดตั้งอุปกรณ์เสริม หากต้องการใช้กับ Kinefinity MAVO mark2 จะต้องใช้ Top Mount Adapter (Kinefinity MAVO mark2) เพิ่มเติม

น้ำหนักผลิตภัณฑ์: 2.20 ออนซ์ (62 กรัม)

ขนาดผลิตภัณฑ์ (กว้าง x ยาว x สูง): 1.10 x 4.24 x 0.60 นิ้ว (28 x 108 x 15 มม.)

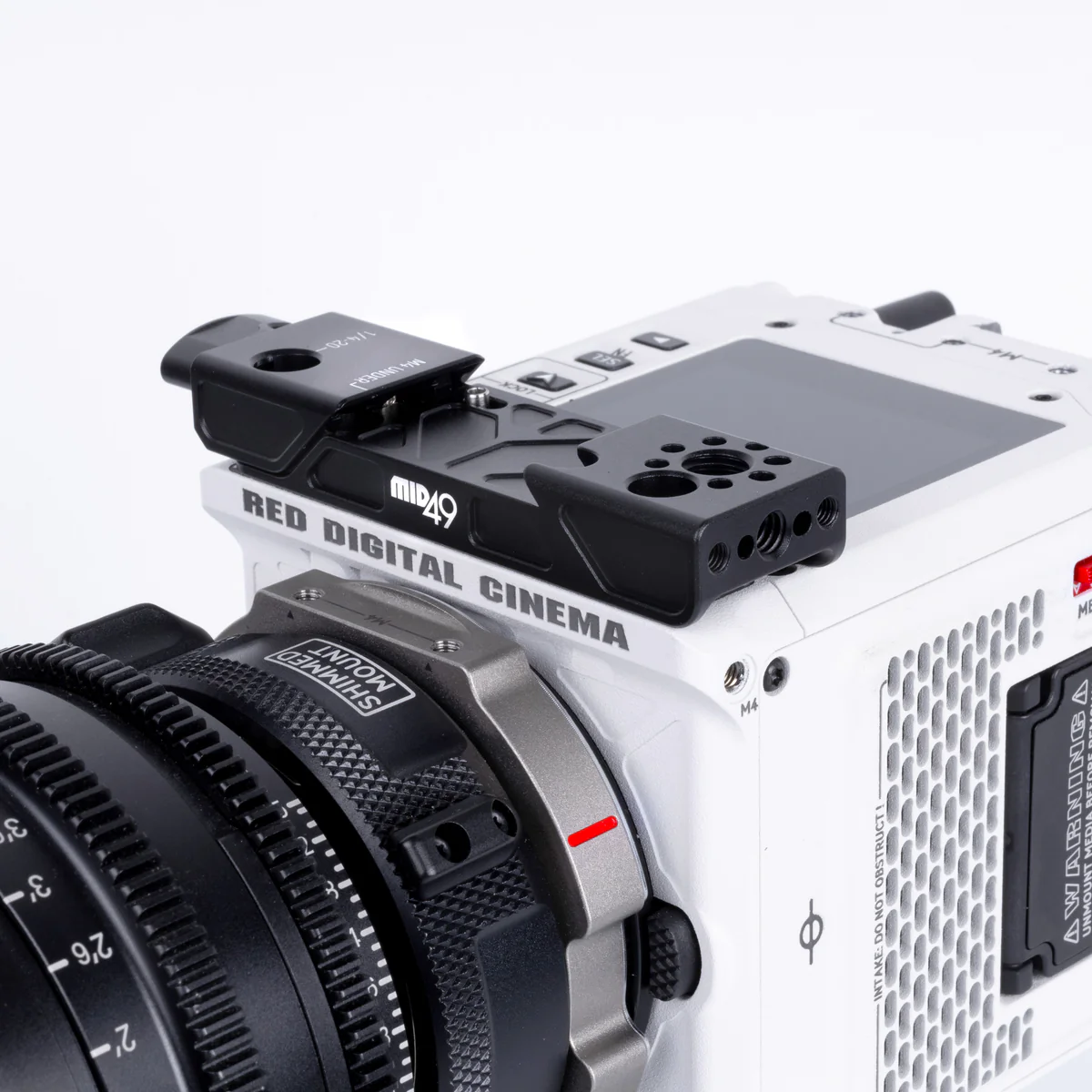

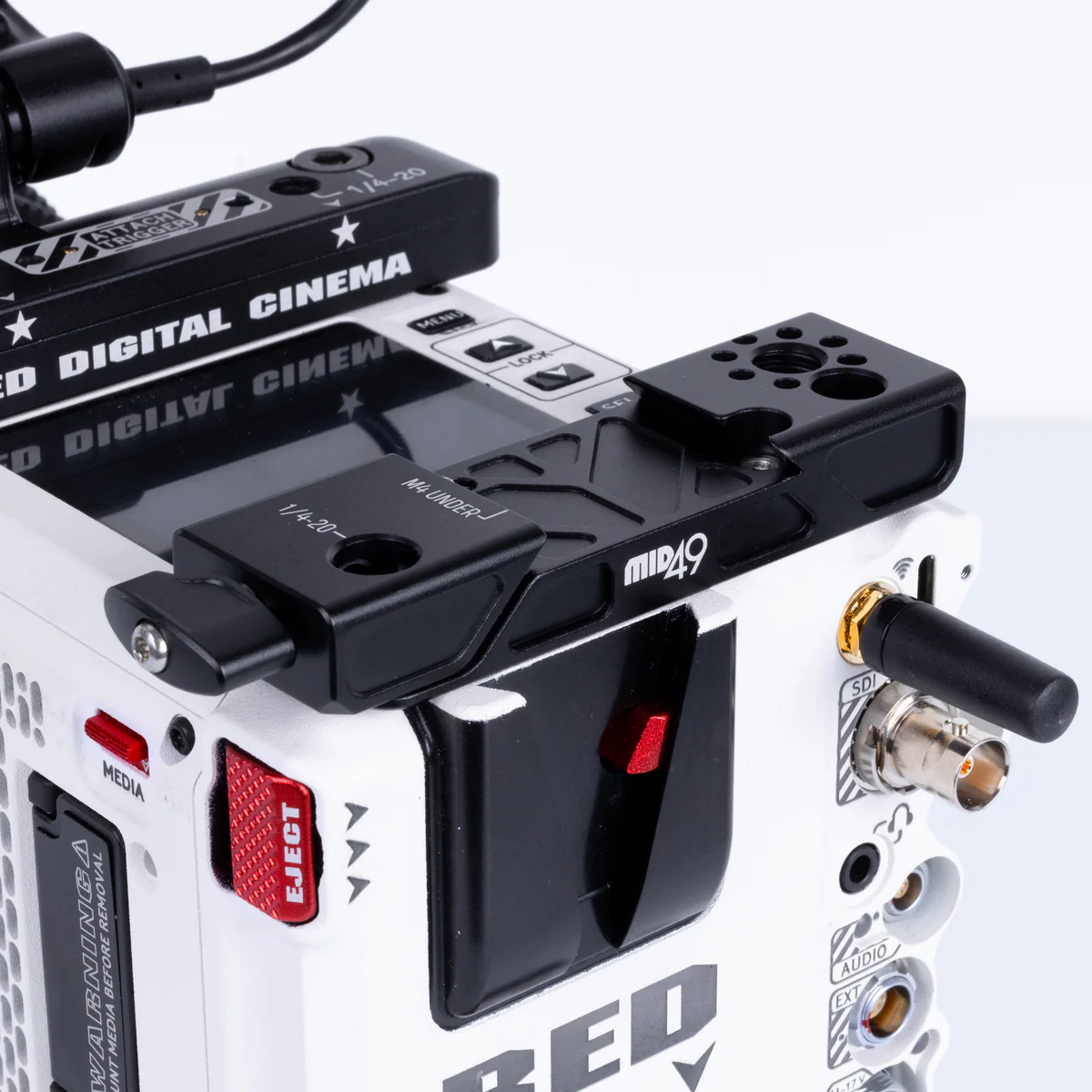

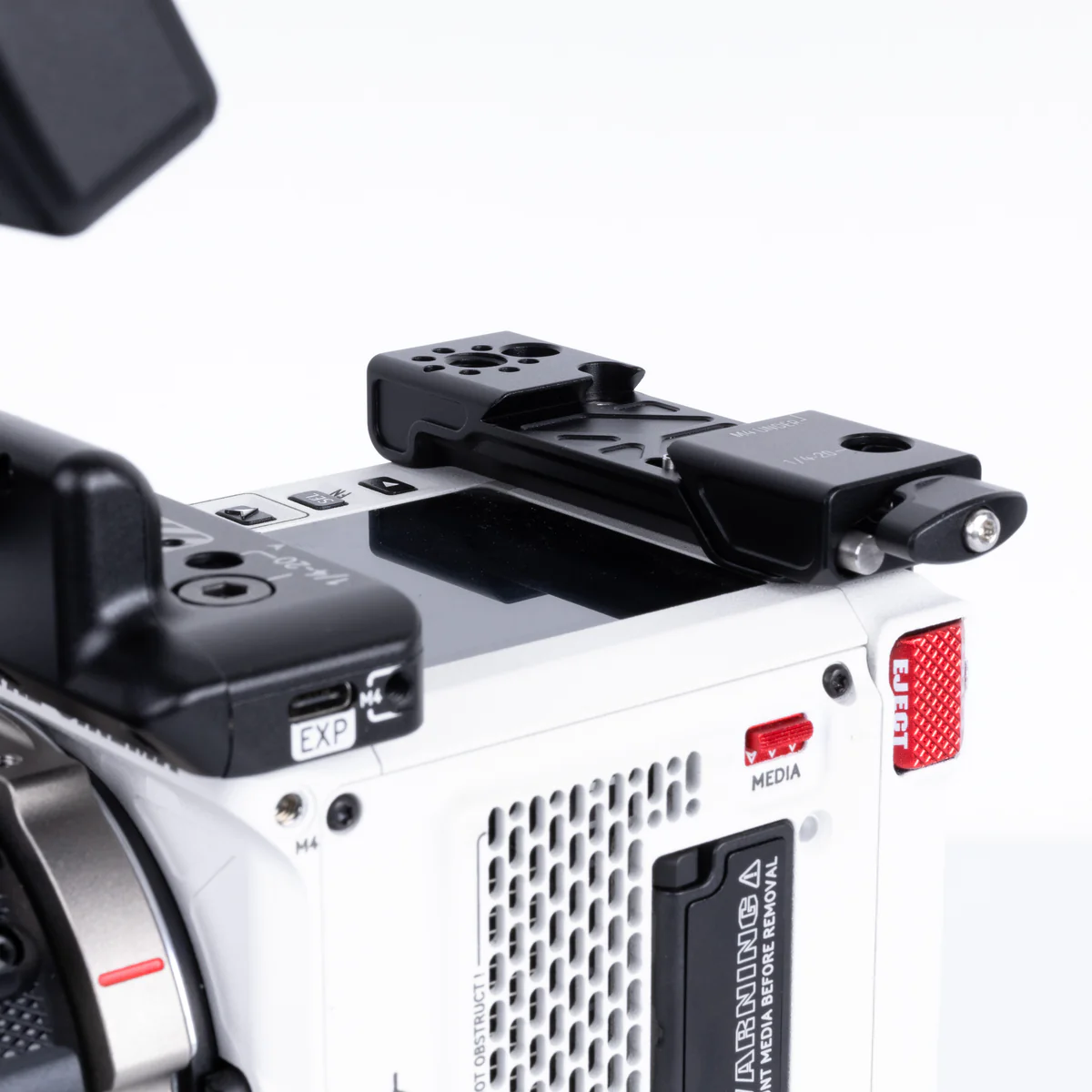

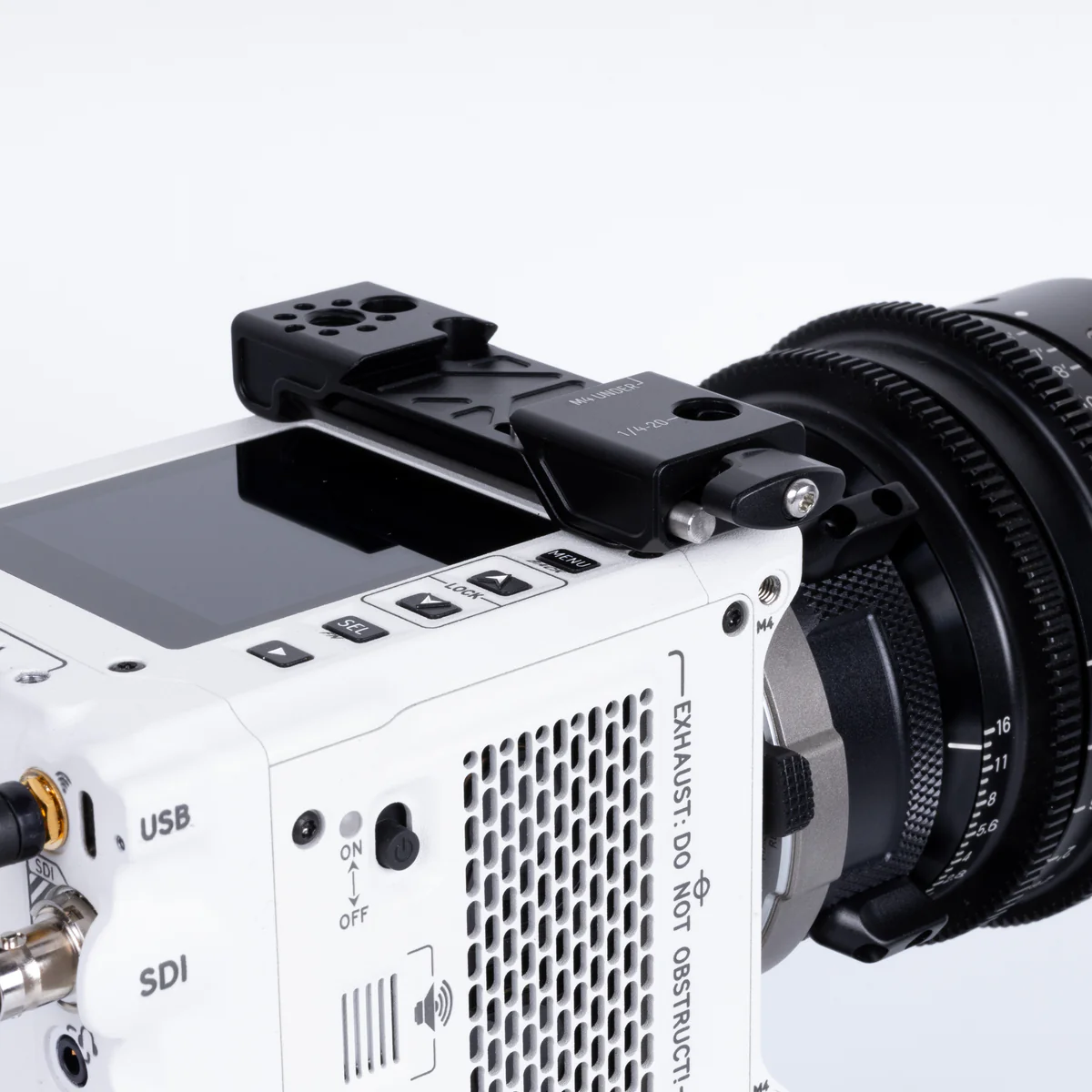

ARCA Top Mount (RED Komodo, Komodo-X, V-Raptor) attaches to two 1/4-20 screws on the top of Komodo, Komodo-X, V-Raptor cameras. On Komodo-X, two included M4 screws can be used to attach the Top Mount to the rear portion of the camera top.
Using the center ARCA Swiss standard slot, ARCA Top Handle and ARCA Top Plate (114mm) can be top-loaded or installed from the back by sliding in. When sliding in from the back, a safety pin will engage with a pop when properly installed. Adjust the position, then lock the ratcheting thumbscrew. Top-loading can be achieved by loosening the thumbscrew, pulling out on the ratcheting knob, and turning the thumbscrew until ARCA clamp has opened fully. Reverse the process to tighten.   Note that for the V-Raptor, it is only compatible with the forward set of top screw holes.

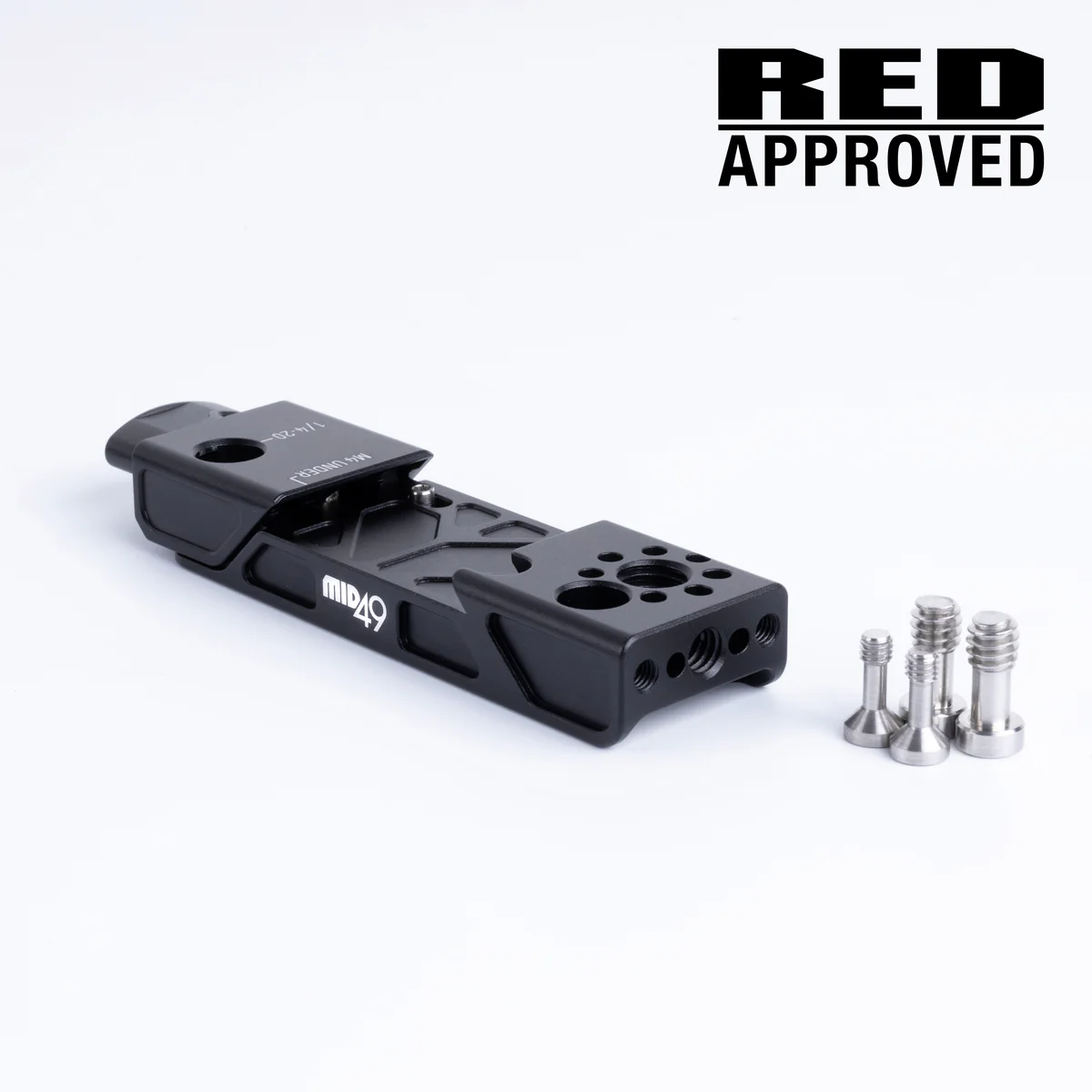

Top mount also has 1/4-20, 3/8-16 with ARRI locating pins, and M4x20mm holes for mounting accessories.

If you would like to use this on the Kinefinity MAVO mark2, you will also need the Top Mount Adapter (Kinefinity MAVO mark2)

Product Weight: 2.20oz (62g)
Product Dimensions (WxLxH): 1.10 x 4.24 x 0.60in (28 x 108 x 15mm)
